Features

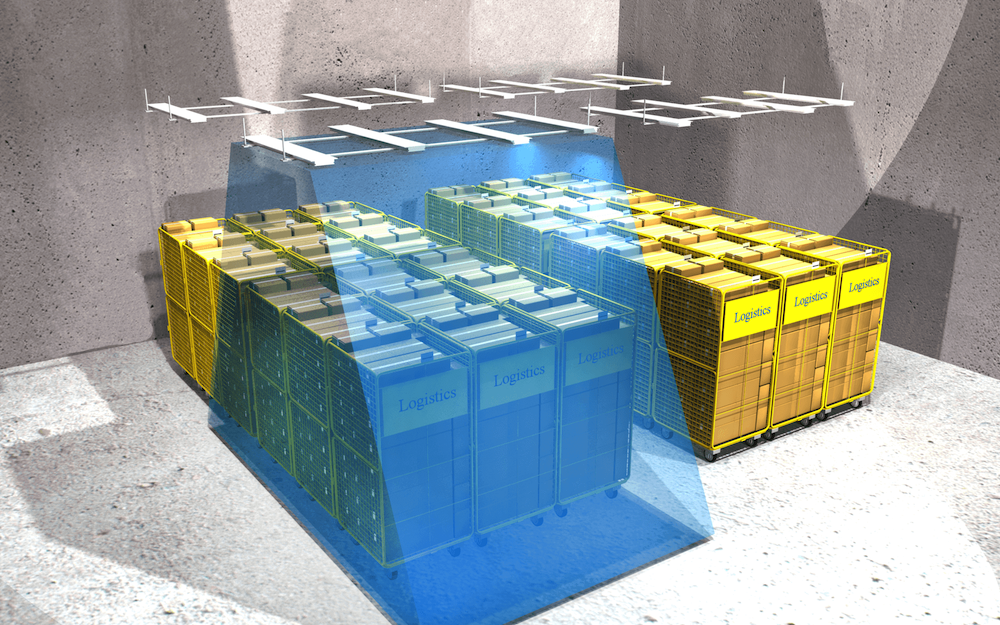

WNC’s Item Locating Solution combines 32 antennas with an RFID reader to detect RFID tags in a variety of locations. Utilizing the advantages of WAVE® Antenna technology, the solution divides the read area into eight zones to provide users with more precise positioning data.
Sales Representatives: [email protected]
Specifications
| Model Name | XRBS-IL5 |
|---|---|
| Dimensions | Antenna: 155 cm (L) × 23 cm (W) × 4.3 cm (H) |
| Weight | 3.6 kg (one antenna set w/4 antennas) |
| Operating Temperature | –20 °C to 60 °C (–4 °F to 140 °F) |
| Frequency Range | 902 MHz to 928 MHz |
| Gain | 4.5 dBi |
| Impedance | 50 Ω |
| Polarization | Multi-linear |
| Maximum Input Power | 10 W |
| Beamwidth | 180° (with metal plate) |
| Connector | TNC reverse polarity |

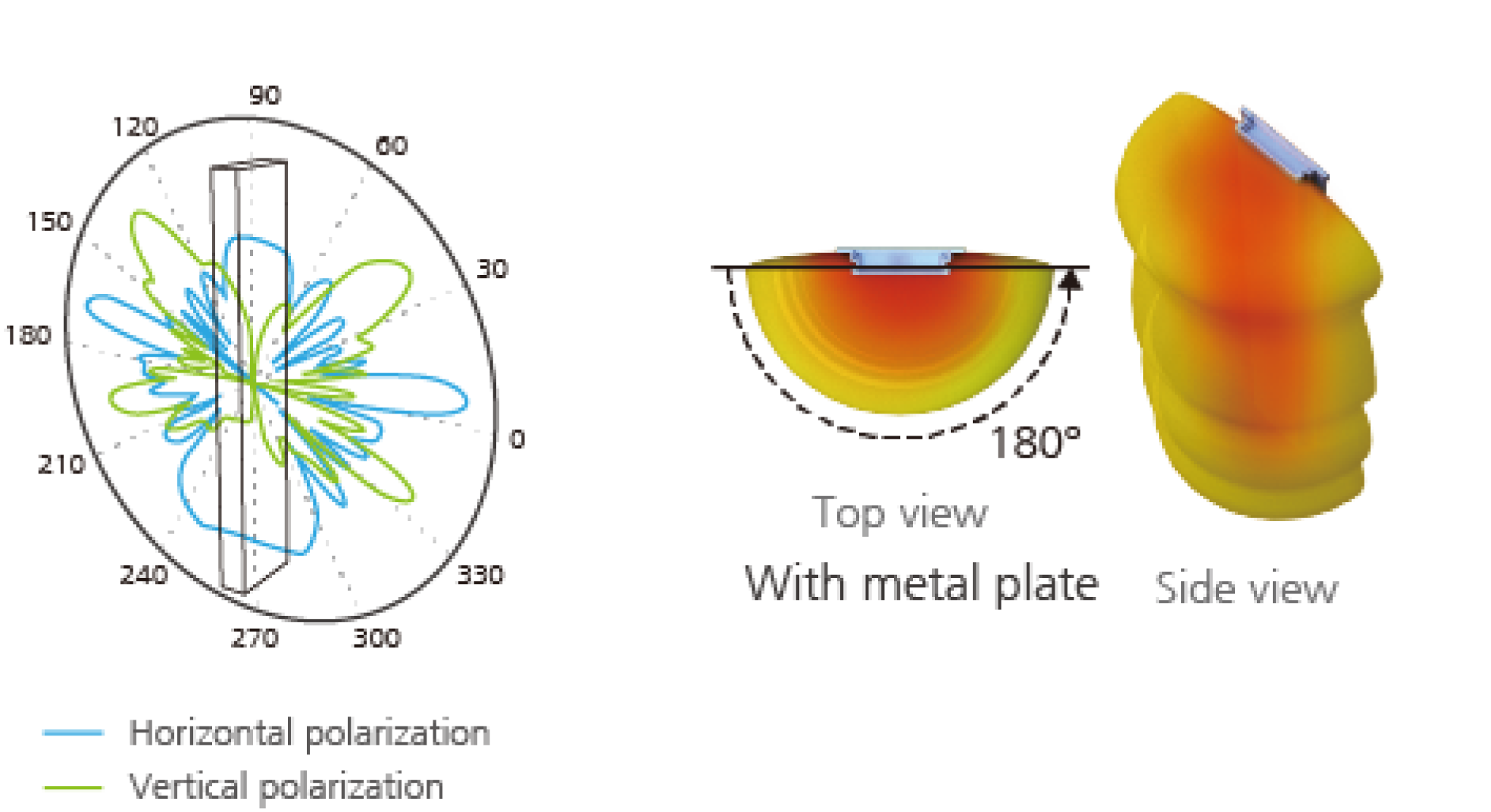

Antenna Radiation Pattern
WAVE® antennas are designed to uniformly illuminate a volume of space. When installed in pairs, the antennas complement each other and provide spatial, direction-of-arrival, and polarization diversities throughout the volume.
